COMPUTED RADIOGRAPHY SERVICE lab IN BANGALORE
Advanced RT Testing Experts. Computed Radiography for Weld, Castings, Components.
Experienced ASNT, NAS410 Level III Certified . NABL ISO17025 Accredited Lab.
Computed Radiography Testing Services in India. Advanced CR Lab in Peenya, Bangalore.
Computed Radiography Testing services are now offered from Trinity NDT Labs in Bangalore. Our labs in Peenya are equipped with CR scanner, digital imaging plates that meets aerospace NDT standards. Capable of testing of welds, castings and components for internal flaws. Also, inspection of assembled electronic components for assembling faults. A modern centre with CR systems, ASNT Level III experts that deliver on-time results. An in-house NAS410 Level III for aerospace NDT applications. IWE certified welding experts from International Institute of Welding – IIW.
‘Trinity NDT WeldSolutions Pvt. Ltd‘, established in 2001 is a leading NDT services providing company in India. Our advanced NDT division provides, Phased Array PAUT, TOFD, Digital ultrasonic thickness gauging and Computed Radiography Services. An ISO17025 accredited lab. Serving 1500+ customers in 45+ countries. Approved aerospace NDT services provider for Hindustan Aeronautics Ltd (HAL), Dassault Aviation, GE, Siemens, NAL Bangalore. GAIL India, Indian Oil, Hindustan Petroleum, BPCL and others in oil and gas.
To experience our world class quality digital CR radiography services, contact us today.
What is Computed Radiography?
Computed Radiography or CR is a replacement for film radiography using digital technology. In this technique, in place of film, digital image is produced using imaging plates. These plates are exposed to radiation in similar manner as film. Latent image obtained is processed using scanner to convert to digital form. The generated image is suitable for viewing on high resolution computer monitor for interpretation.
Once the image is recorded and stored, the imaging plates can be deleted for reuse. The imaging plates can be used up to over 1000 times depending on usage. Stored images can be viewed, interpreted and transmitted anywhere.
Overall, CR radiography eliminates film, processing chemicals, dark room and much bigger savings on exposure times. In near future film radiography is completely being replaced by CR and digital radiography – CR systems. Images produced are of top quality than film radiography. Can be viewed on monitor for precise defect sizing.
Computed Radiography Procedure
In Computed Radiography, an imaging phospor plate is exposed to x-ray or gamma radiation. Isotopes can be Iridium 192 or Cobalt 60. Radiation energy is thus stored in digital form in the imaging plates. These plates are passed through scanner for reading latent image. A finely focused laser beam stimulates the image plate leading to emission of blue light. This light is in proportion to radiation received at a given area on the plate. A photo multiplier, special reading device converts this light into analog form. An analog to digital converted converts digital image enabling to store in viewable format.

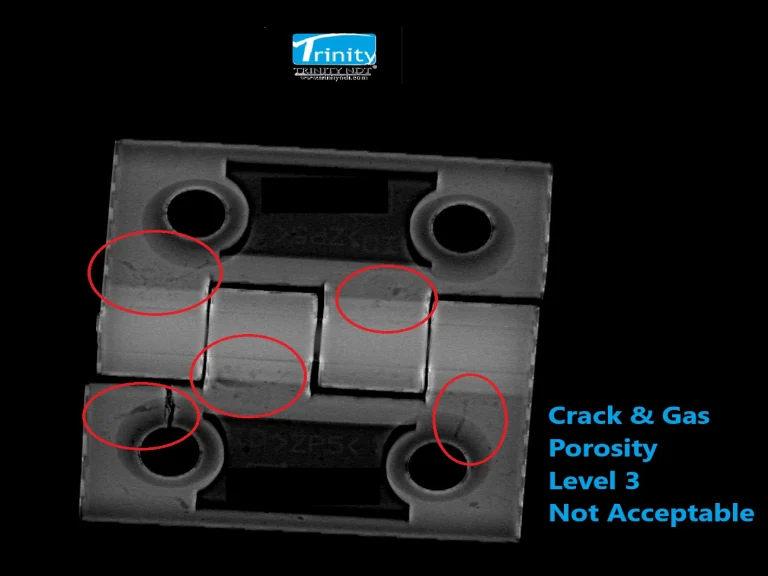

These CR generated images can be viewed, evaluated on high resolution monitor. Highly convenient for precisely measuring the flaw size. The plated can be erased using the scanner and reused 800-1000+ exposures.
At RT labs, we have the capability to go up to 50 micron laser CR system which is industry’s best resolution achievable.
Advantages using CR
There are great number of advantages using CR. Following are few listed.
- No need of darkroom, unlike film radiography
- Considerably less exposure time
- Imaging plates are reusable. Life 1000+ exposures
- Enhanced viewing of images on high resolution computer monitors
- Facility for localized viewing, sizing of flaws
- Soft copy. Easy to share, transmit, retrieve.
- Cost effective
- Better sensitive than films
CR Applications
At the faster pace, CR is replacing film radiography. In the next couple of years, the CR may sure replace film based radiography. Below are few applications currently in use.
- Oil and Gas for testing of critical weld joints
- Aerospace for inspection of casting and raw materials
- Electronic industry for inspection of brazed soldered joints
- Automobile castings
- Failure analysis
- Research & Development
Why Trinity NDT Labs for Computed Radiogaphy?
Being a pioneer in adapting to new advanced technologies in NDT, we are fully to equipped to carry out Computed Radiography. Located at Peenya Industrial Area in Bangalore. We serve clients pan India across sectors such as oil gas pipe lines, castings, fabrication companies.
We have both conventional radiography testing and advanced RT services. Strongly believe in quality, integrity and professionalism. 1500+ spread across India, clients choose us for the following reasons.
- NABL ISO17025 Accredited Lab
- 20,000 Sq.ft area. Largest of its kind in India
- In-house experts ASNT, NAS410. IWE certified welding engineers
- Licensed RT enclosure from AERB, Mumbai. 24X7 services
- Experienced Radiographers
- Cost effective solutions that meets your budget
- Fastest services. Quick response team.
- Labs approved by leading companies in India.
- Reputed NDT company in India since 2001.
Choose Our Conventional, Advanced NDT Services
At Trinity NDT, we provide world class NDT, Welding services for various industrial sectors. We serve oil, gas, automotive and aerospace sectors. Whether its is conventional Ultrasonic testing, Eddy Current testing, Penetrant testing, Magnetic particle testing or advanced NDT, welding solutions, we help you to bring the latest to deliver you the best.
Contact us today, to collaborate with us. Work together to meet you project quality assurance, third party services. Complete solutions on NDT and Welding. We will be glad to work and progress together.
